3030 Aluminum Extrusion - T Slot

3030 (30mm x 30mm Square) Aluminum Extrusion - T Slot Profile

Stronger and more rigid than 2020. 3030 extrusion is ideal for CNC frames, machine bases, structural supports and applications requiring higher stiffness in one axis.

Specifications

• Profile Size: 30mm x 30mm

• Material Grade: 6063-T5

• Weight: 0.67 kg/m

• Wall Thickness: 1.2mm

• Slot Type: Standard 8mm T-slot (suits M4 / M5 hardware)

• Finish: Mill finish

• Supplied with protective adhesive wrapping

Features

• Increased stiffness compared to 3030 profile

• Excellent for CNC gantries, vertical supports and load-bearing frames

• Straight, dimensionally stable and corrosion resistant

• Compatible with standard 30-series brackets, T-nuts and connectors

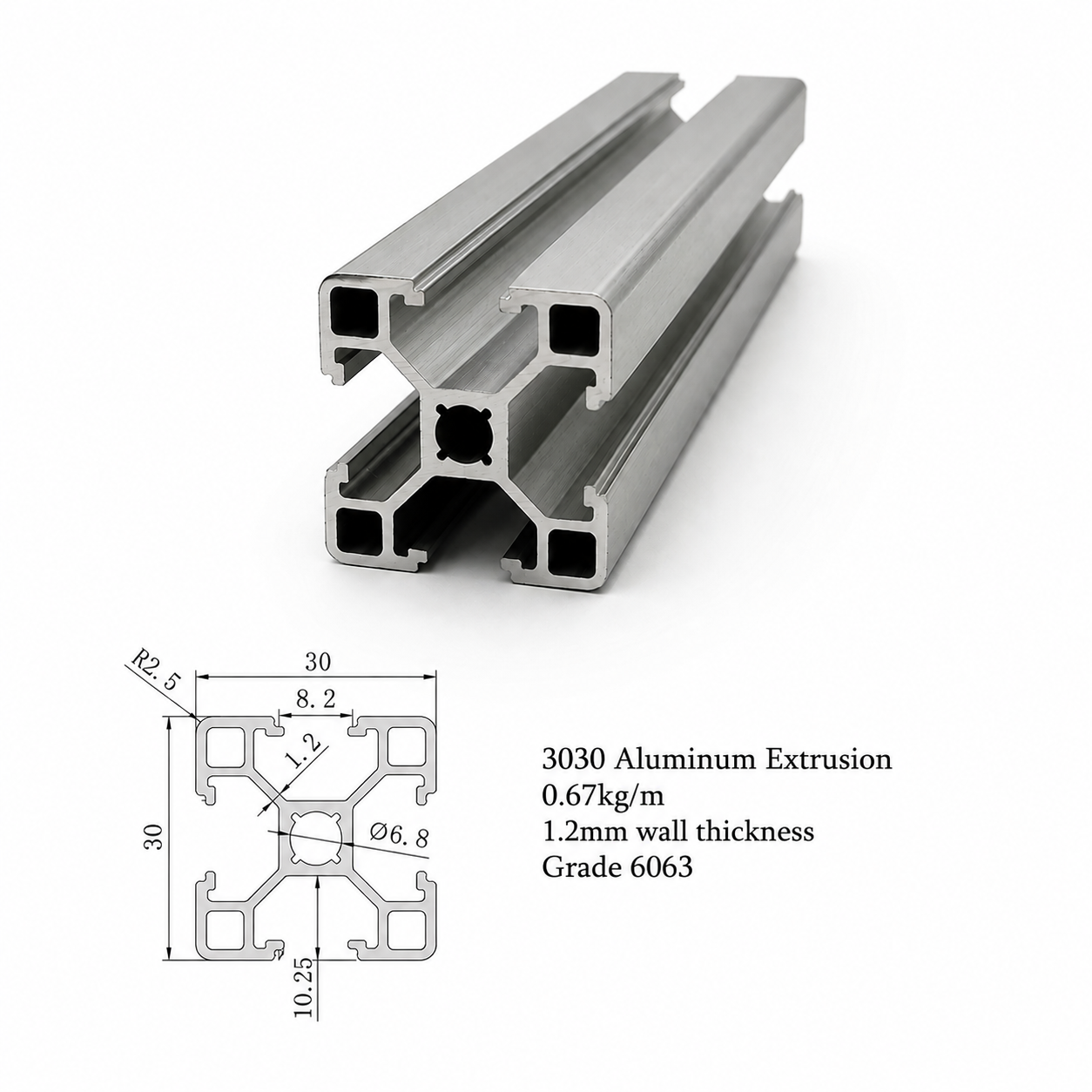

• End faces can be tapped for internal screw connections (see cross-section drawing)

• Can be oriented vertically for improved bending resistance

Shipping available up to maximum length of 2400mm, otherwise please reach out for a shipping quote for longer lengths. Alternatively pick-up / delivery in Auckland available for 3000mm lengths.

Custom orders available - welcome to reach out
