8080 Aluminum Extrusion - T Slot (Price per meter)

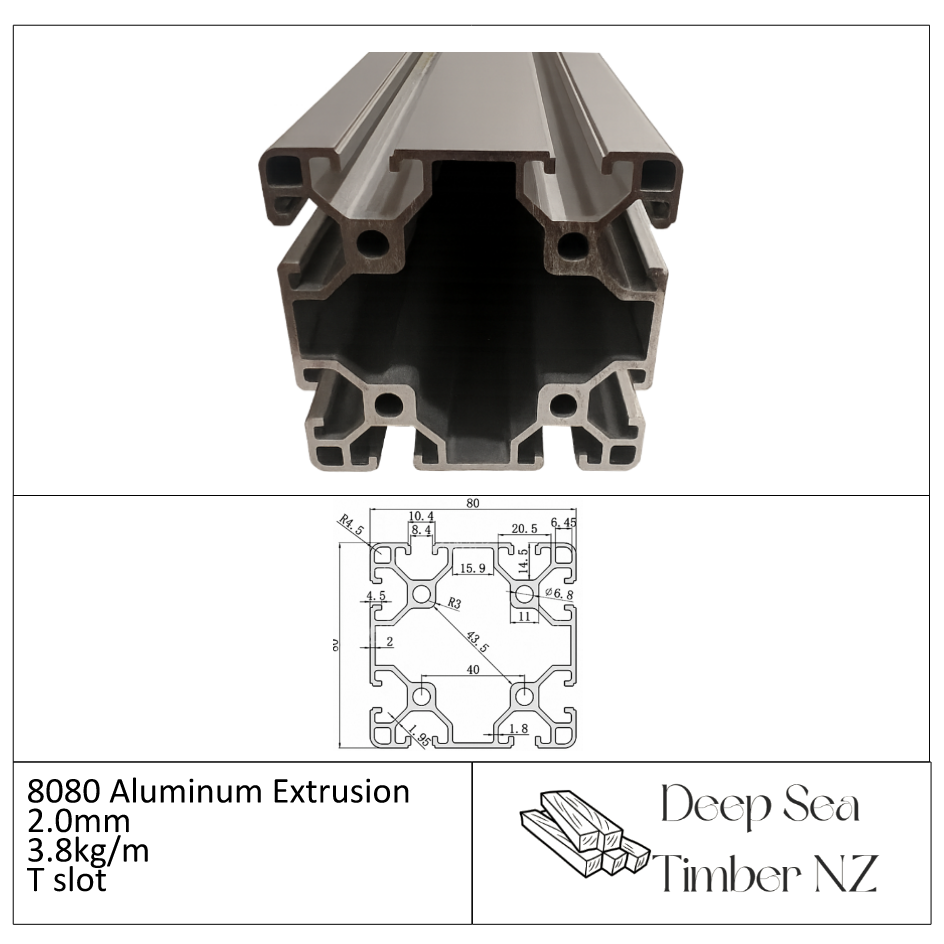

8080 (80mm x 80mm SQ) Structural Aluminum Extrusion - T Slot Profile.

Price is Per Meter.

- Large profile suitable for load bearing applications or spanning long distances with minimal deflection / torsion under loading.
- Straight, dimensionally stable and durable for harsh environments.
- 1000mm span with hardware (such as CNC router spindle / router sled) has a theoretical deflection around 0.01mm with near zero twisting for offset loads.

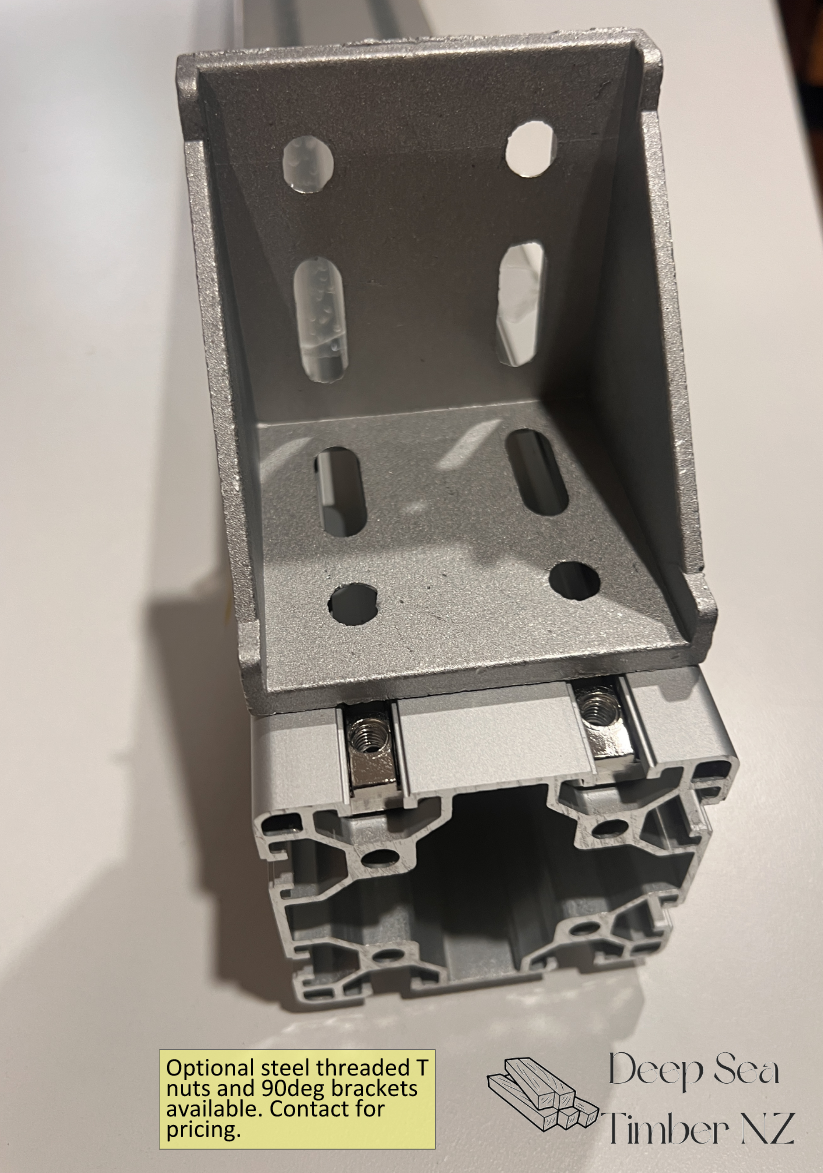

- T slots / connector brackets can be supplied separately - great for mounting HGR rails / general hardware.

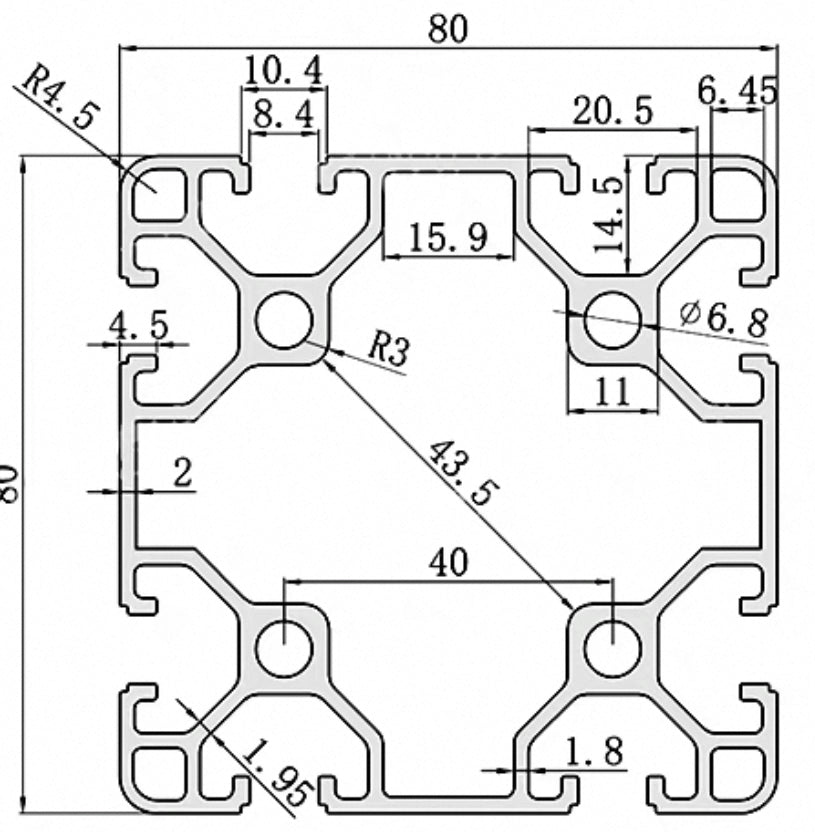

- Requires hole tapping for end screw connections - see cross section drawing.
- Comes in adhesive plastic wrapping.

Shipping available up to maximum length of 1800mm. Alternatively pick-up / delivery in Auckland available for 3000mm lengths.

Same day urgent / afterhours delivery available in Auckland region (within 40km of Glen Eden) - $50

Custom orders available - welcome to reach out or search Deepseatimber.
